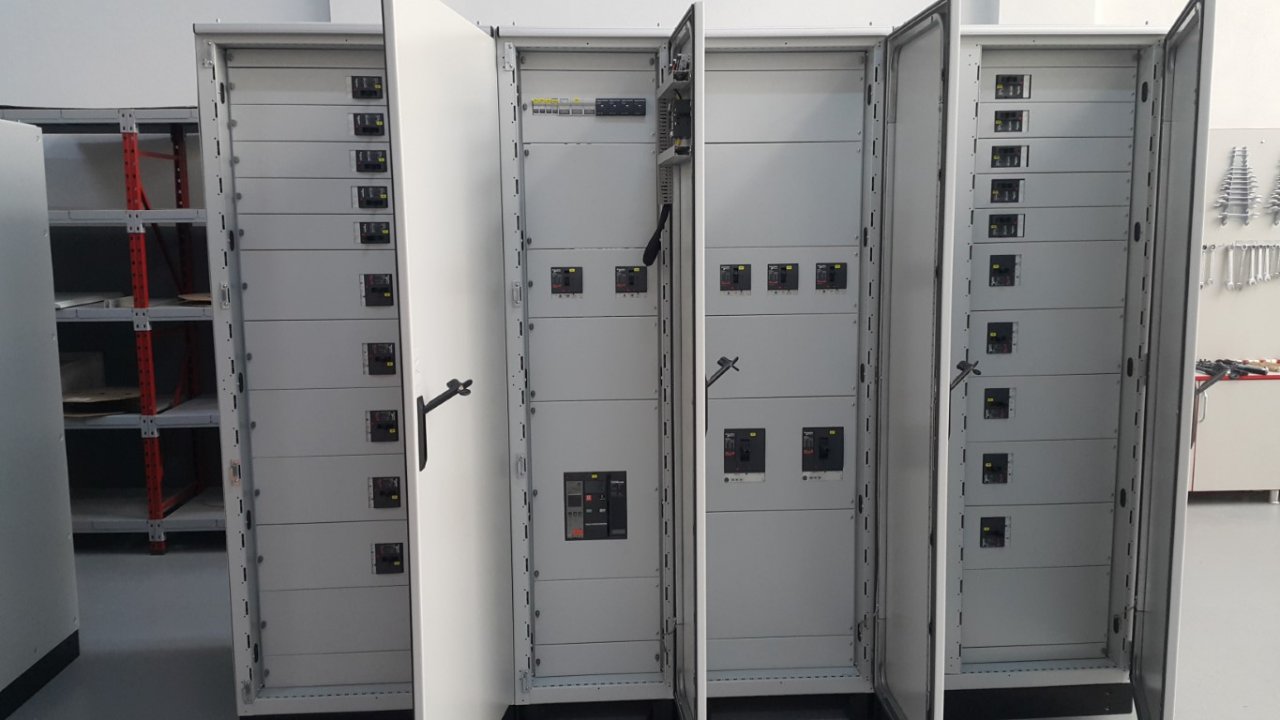

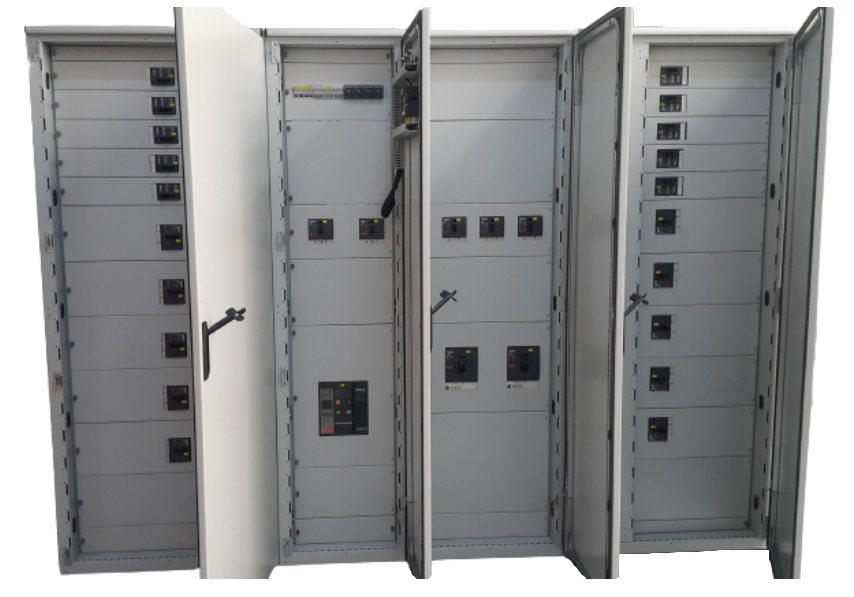

Main Distribution Board

Sub-Main Distribution Boards and Field Distribution Boards. In order to be able to deliver the energy taken by the low voltage side of the main distribution transformer to the end user in a proper way.

It contains all

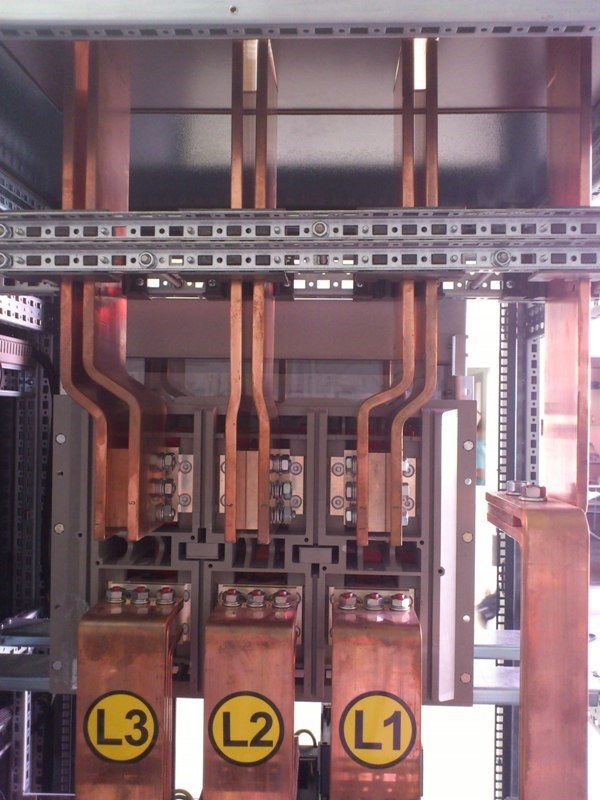

necessary measuring and control equipment. The important points to be considered in the design are cabinet dimensions in accordance with the standards, appropriate forming, busbar and cabling designed in accordance with the voltage to be applied and the current to be drawn, measurement and evaluation equipment and the correct selection and placement of current transformers, supply and installation of protection features against earth leakage

Basic Specifications of MDB Panels Recommended by LINK PANEL

• Production and assembly in accordance with IEC 61439-1/2 standard,
• Capacity up to 6300 A.
• Operating voltage 690VAC,
• Production and assembly in Form2, Form3 and Form4 Type.

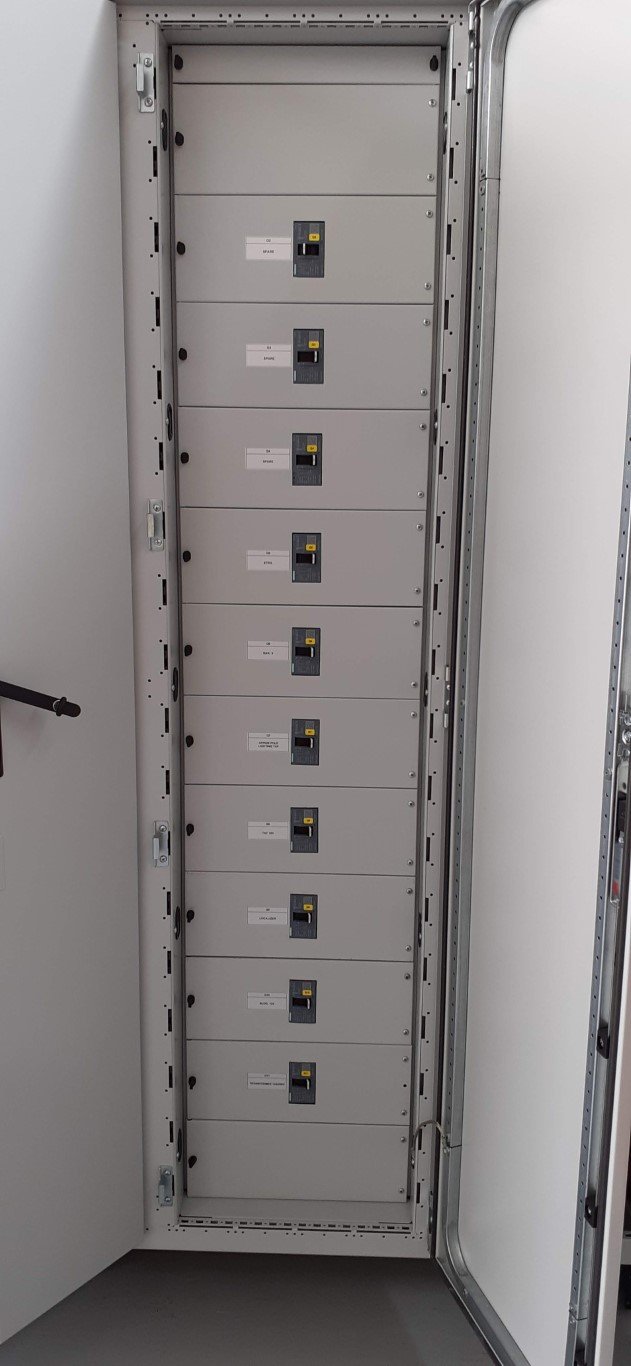

• Design according to drawer and steady systems.
• Type tests for 85kA/1sec. and 50kA/3sec.

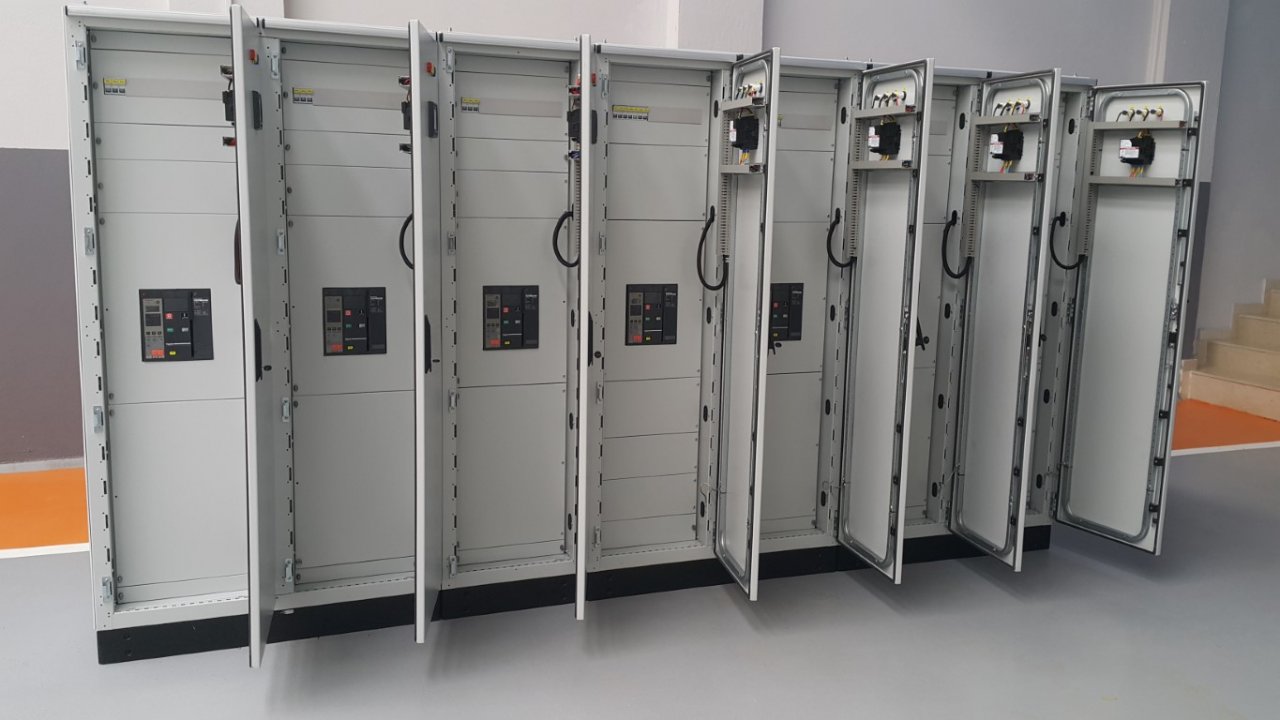

• Design with drawable and fixed systems,

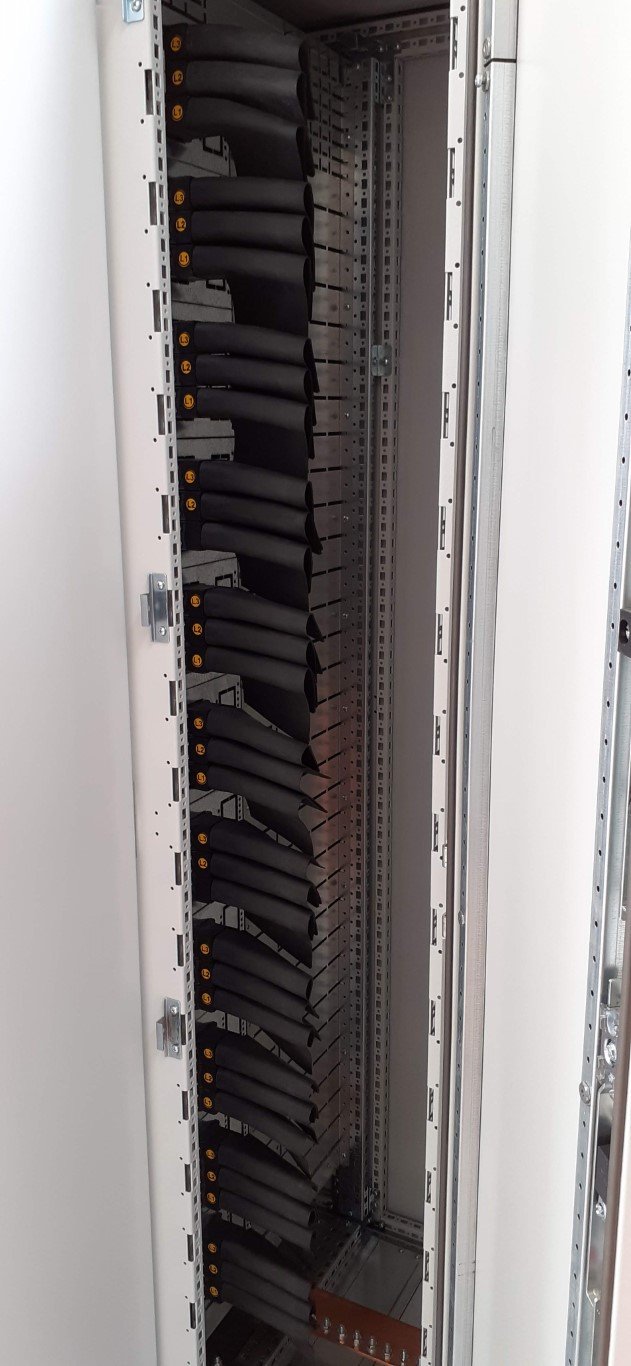

• Enough wiring space for easy connection,
• Cable entry possibility from top and bottom,
• Front and rear intervention possibility,
• Protection Class IP30/lP31/lP55,

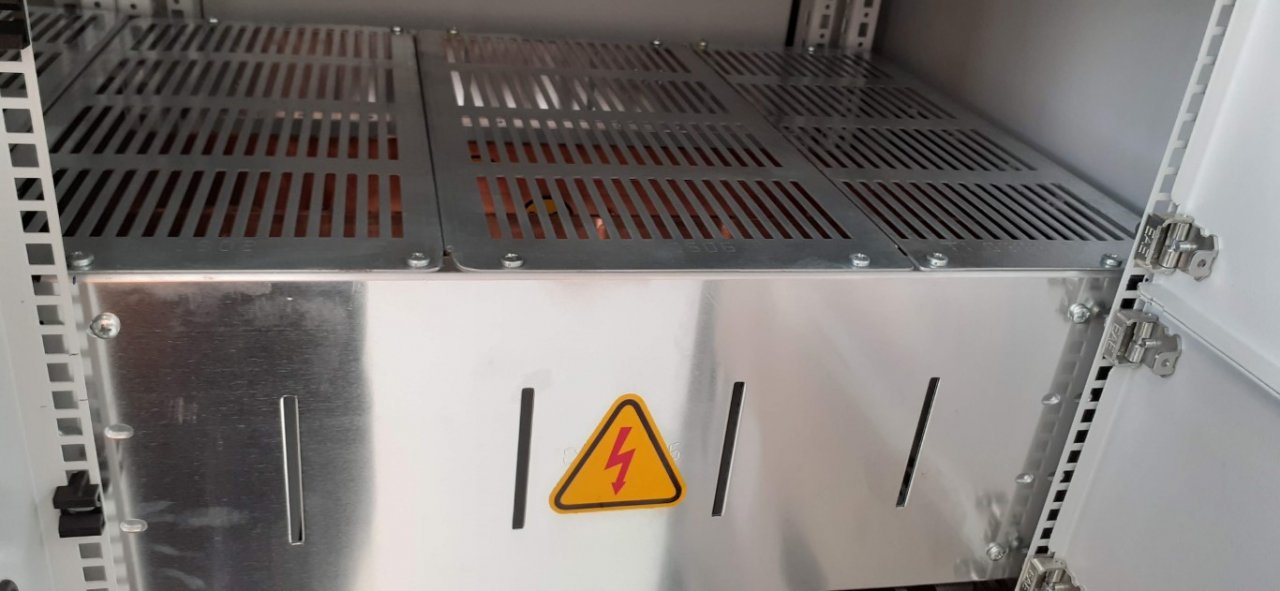

• Protection against mechanical impacts
• With IK07 cover sheet,
• With IK08 IP30 door,
• With IK10 IP55 door,

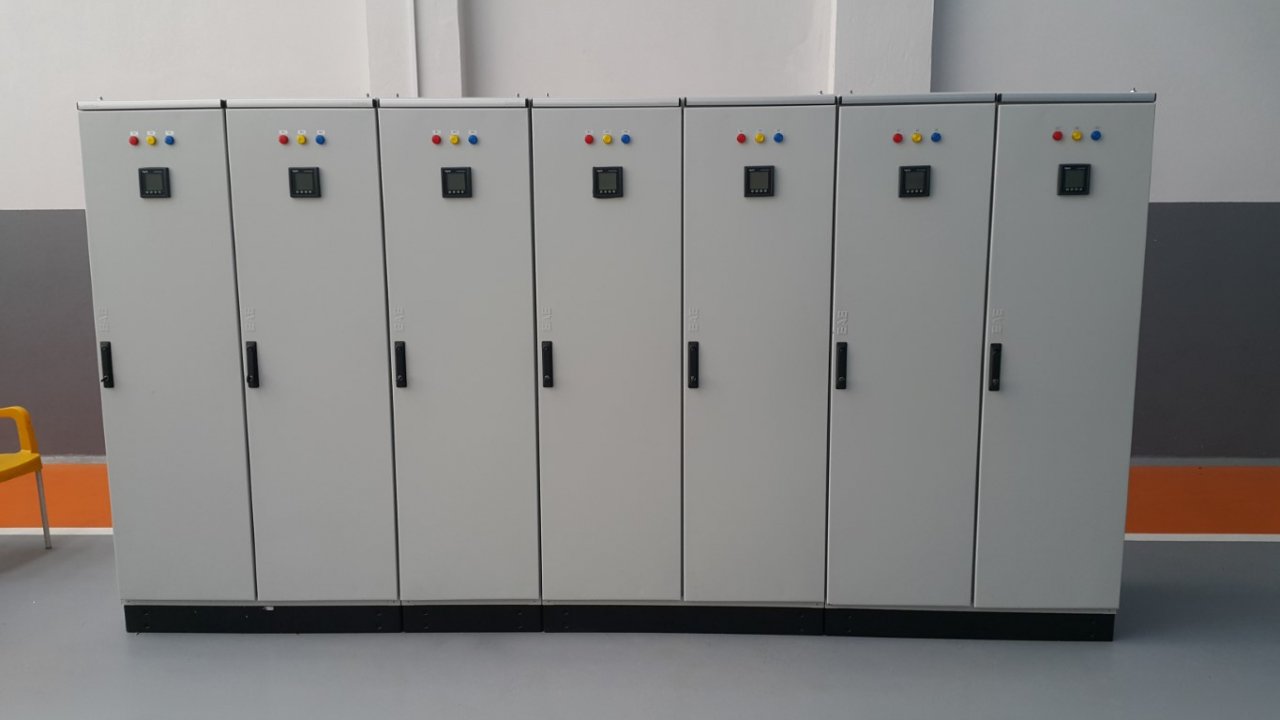

• Free standing type, floor mounting,
• Maximum safety and reliability,
• Modular structure according to end user needs expansion possibility.
