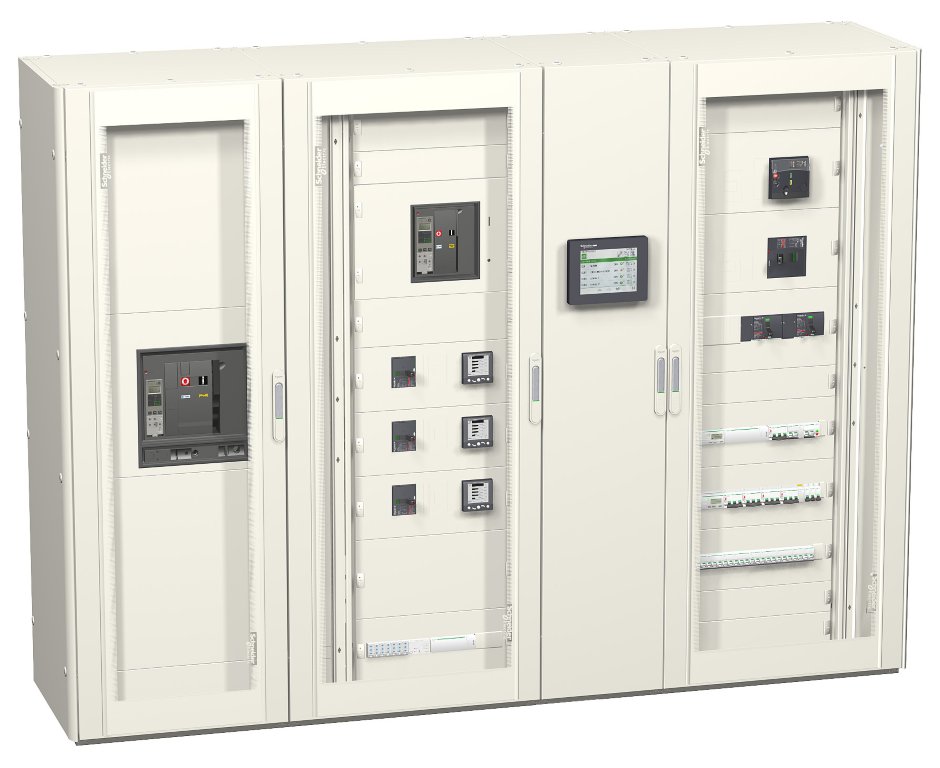

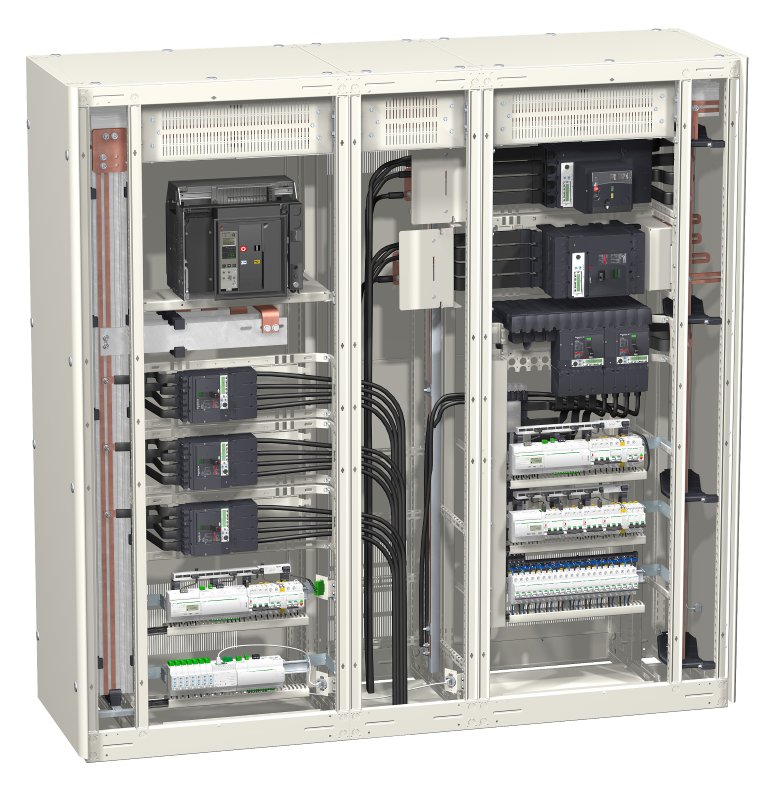

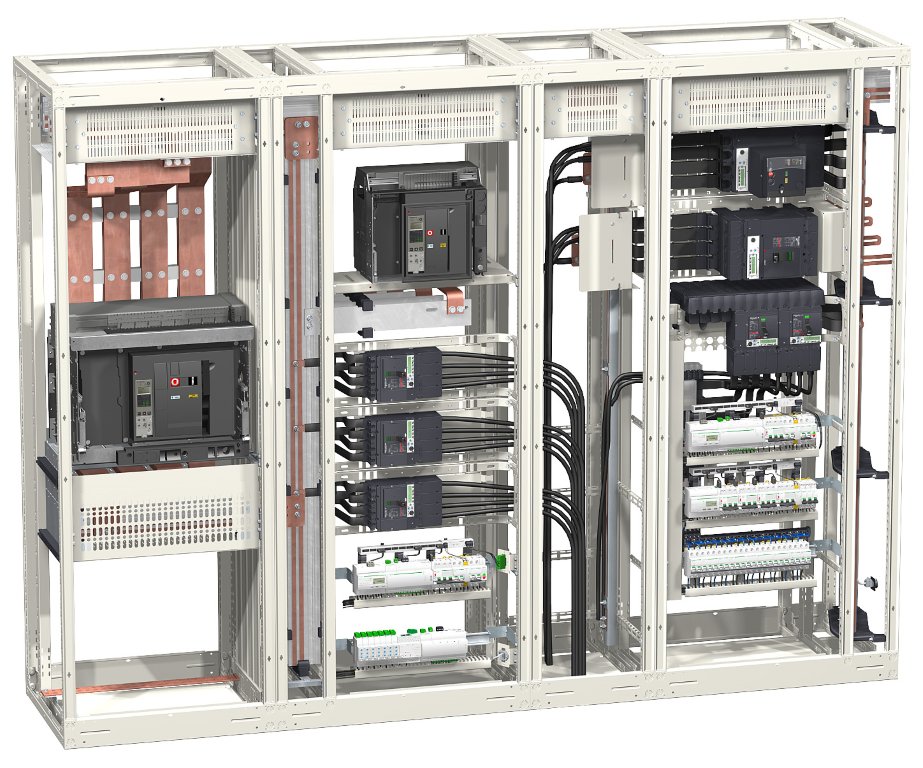

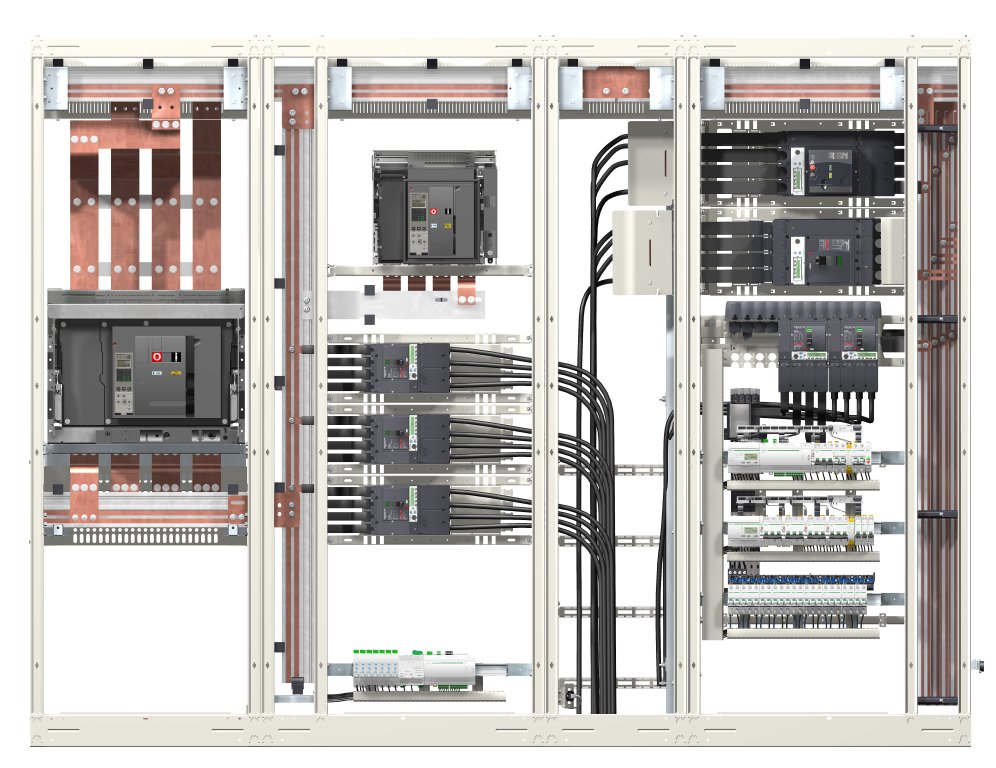

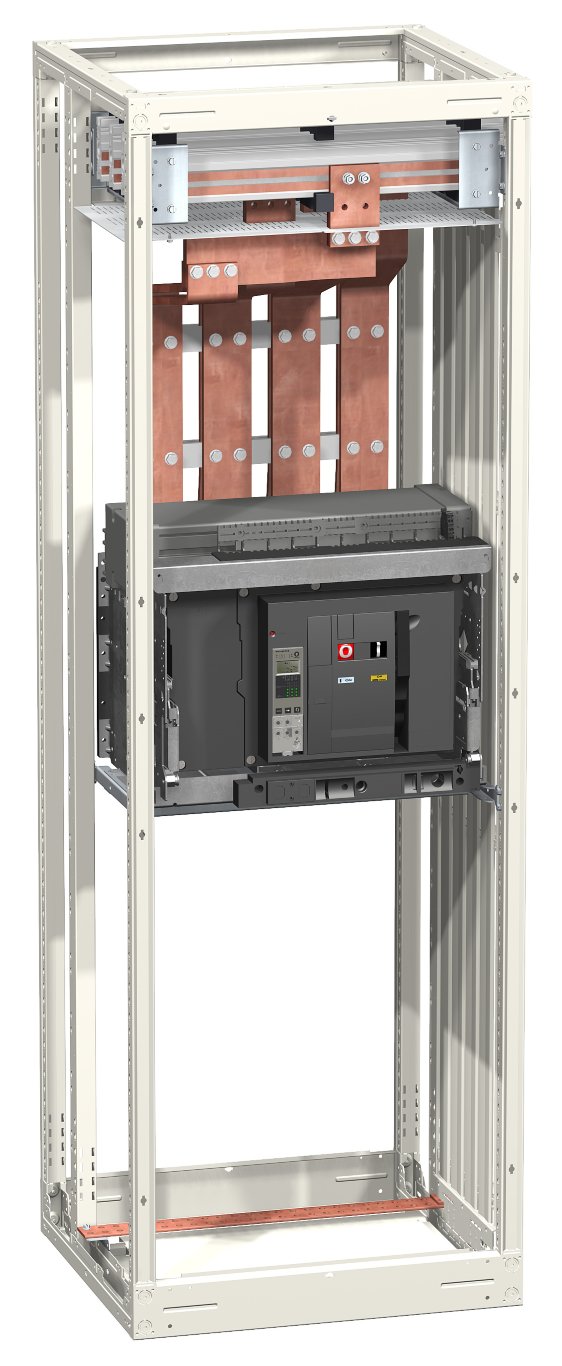

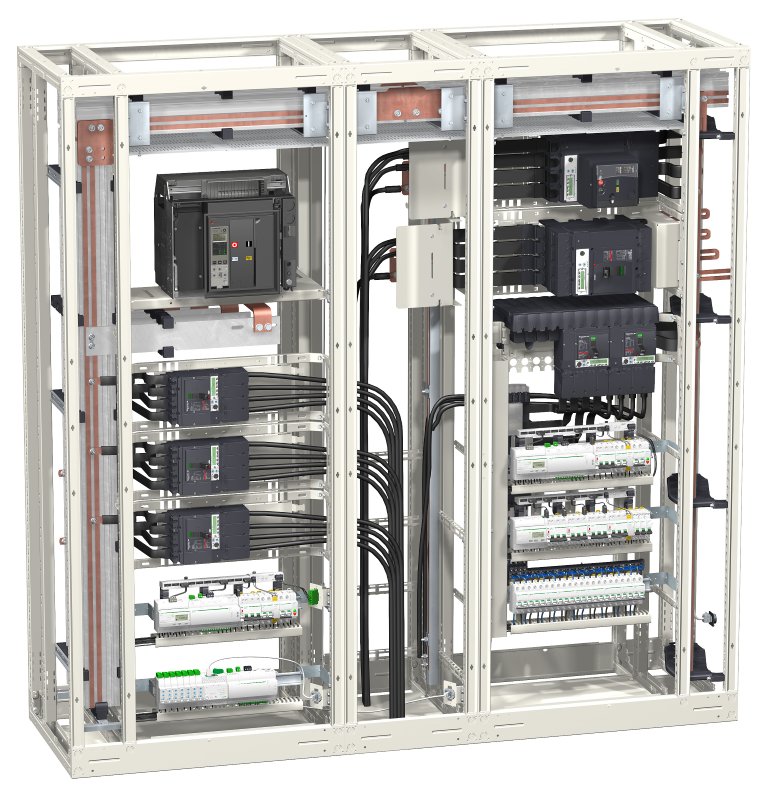

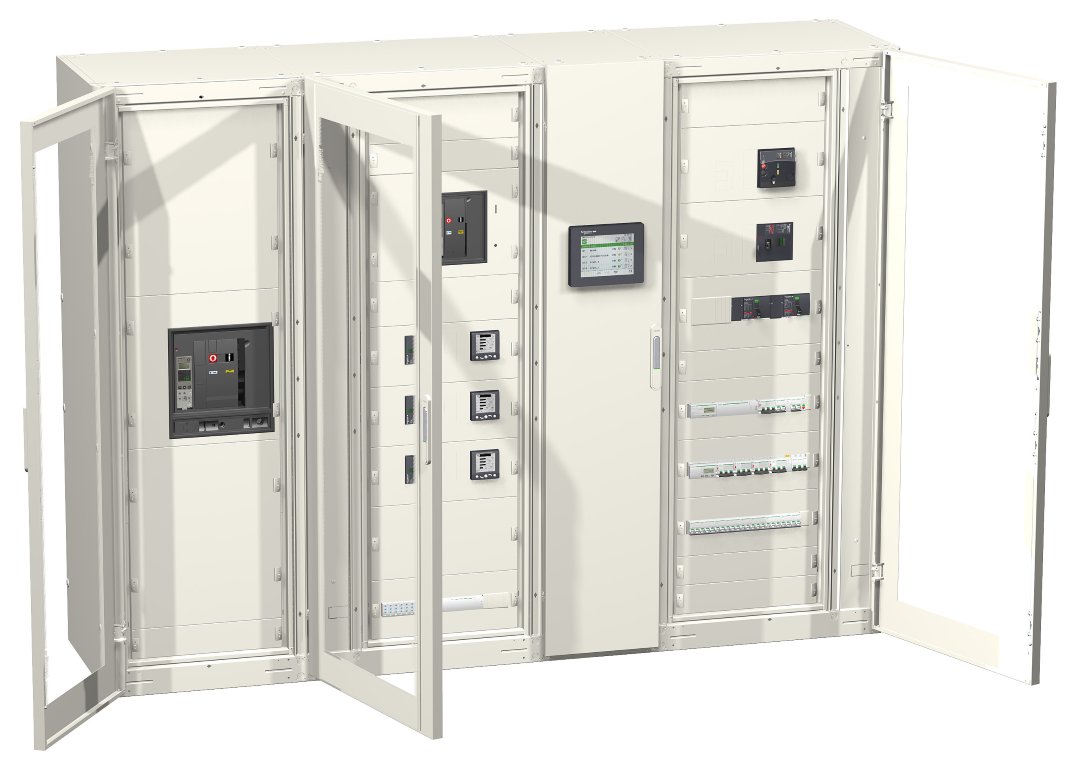

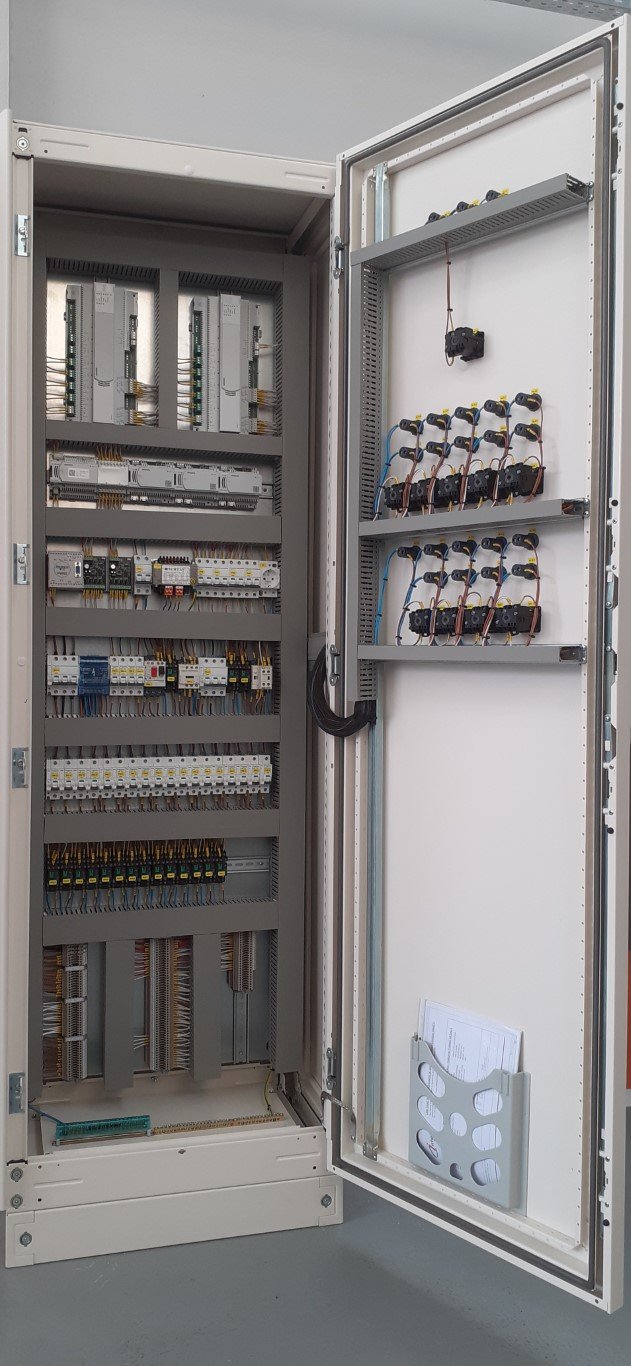

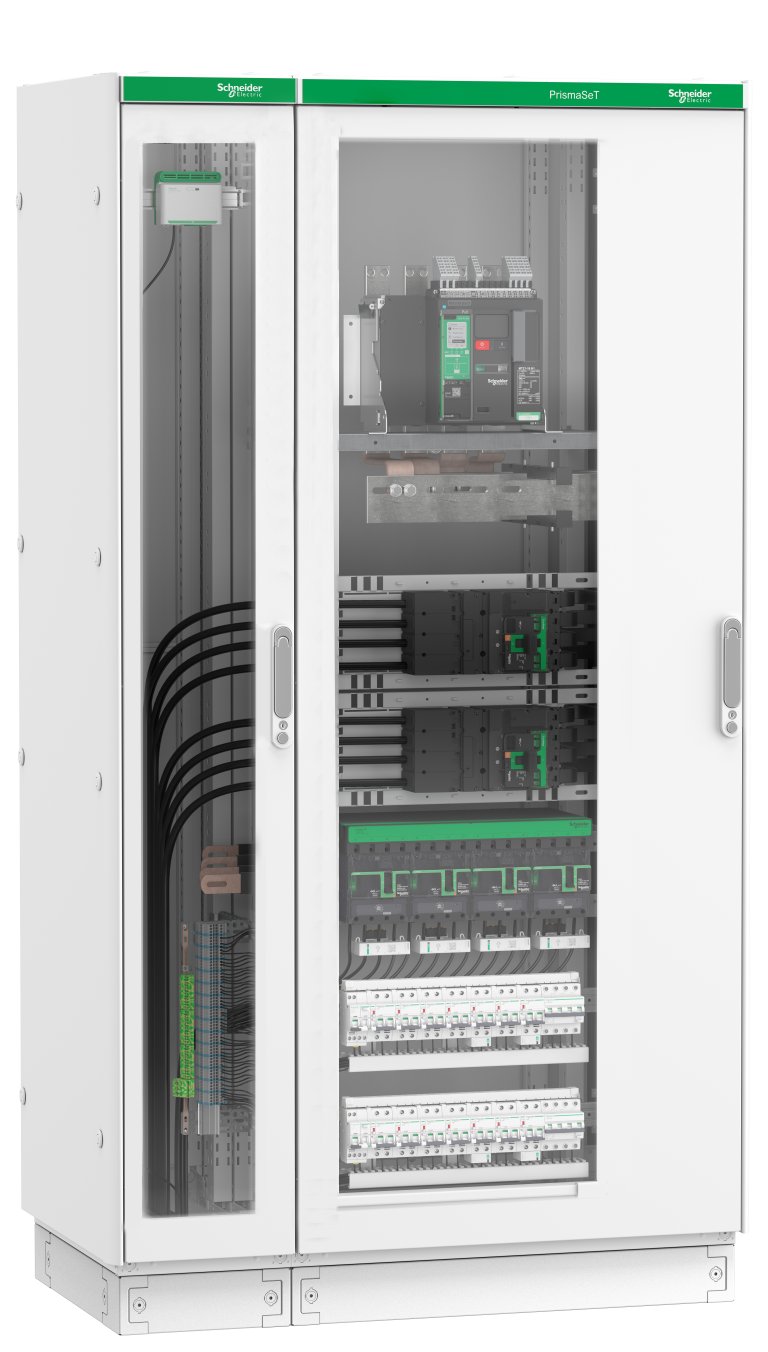

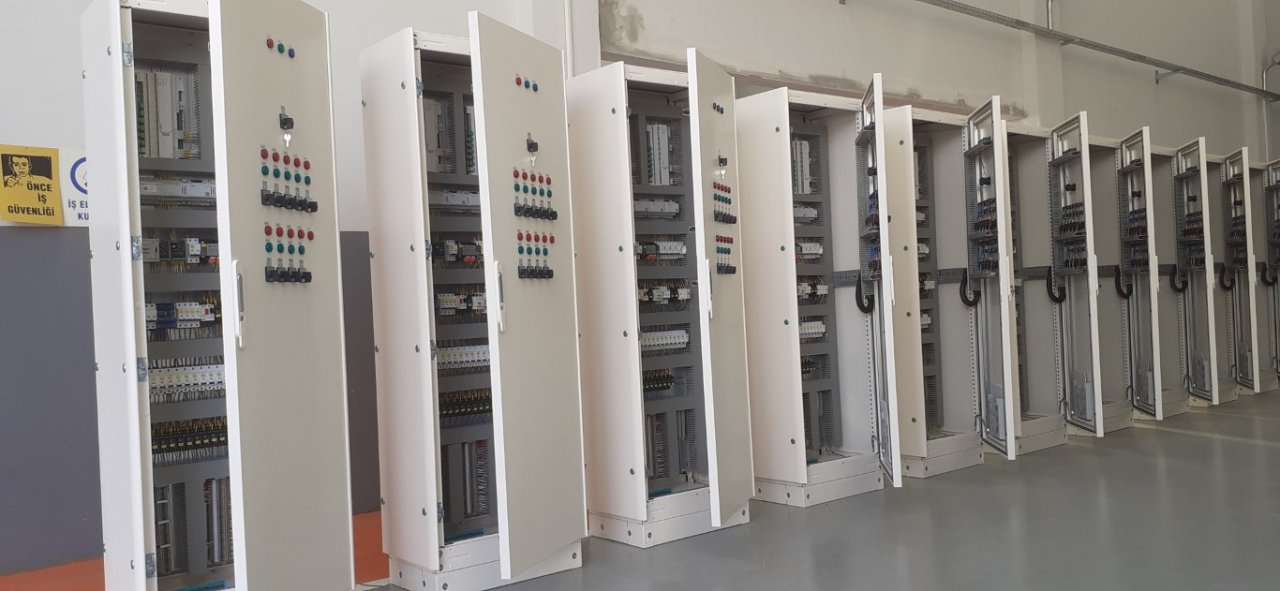

Prisma P

Standing type modular panels with up to 4000 A and IP30 – IP55 protection

Trustworthy

Developable

Simple functional systems

Schneider Electric specializes in low voltage equipment:

• Short circuit withstand
• Electromagnetic compatibility
• Protection of human life against electric shocks
• Protection of life and property against the risk of fire
• Protection of equipment against environmental conditions
• Coordination of protection devices

Your life and property are safe

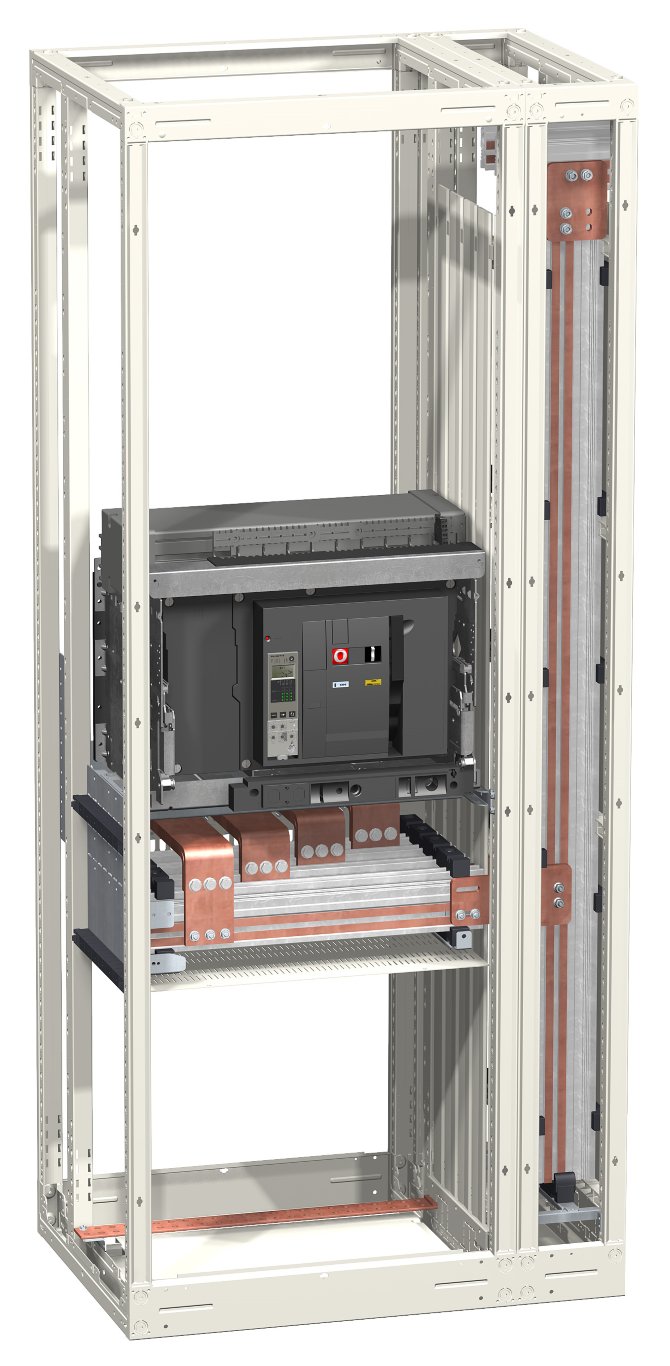

You can be sure that the coordination between the Prisma solution and the switchgear and current distribution system has been tested on all types of switchboard architectures. In this way, the equipment functions flawlessly. Busbars are located in a sheltered area, depending on the form selection. The clearances between the conductors have been calculated to eliminate any risk that could cause leakage current. The switchgear mounted behind the faceplate leaves only the joystick exposed.

Wiring is carried out in special areas to prevent accidental contact with live parts. Tested enclosure manufacturing IEC compliant, providing full flexibility 100% of panel builders and contractors using the Prisma solution can prove that their switchboards are tested and compliant with IEC standards.

Assembly and installation also comply with standards.Thanks to the prefabricated Prisma solution and the consistency of the component set, assembly, wiring and installation can be carried out in compliance with IEC standards without any difficulties. Panel builders and contractors work efficiently, no matter how complex the specifications: the panels are reliable, their delivery and installation carried out on time.

Certificate is given as a result of the tests

Following the completion of the production, routine tests are carried out in accordance with the standards and the result is reported.

Usage areas :

• Hospitals
• Data centers
• Logistics centers
• Shopping malls
• Office buildings
• Medium-sized industrial solutions

Electrical properties

Compliance with IEC 62208 and EN standards

• Insulation level of main busbars: 1000 V
• InA : 4000 A
• Max withstand current Ipk: 220 kÂ
• Short-time withstand current Icw: 100 kA rms / 1 second
• Frequency: 50/60 Hz
• Operating voltage: 690 V

Mechanical Properties:

• Steel sheet, Cataphoresis treatment + hot polymerized polyester, epoxy powder, white color RAL 9001
• Can be disassembled, combined side by side and back to back
• Degree of protection:
  • IP30: Frame with door or cover panels IP30 including cover
  • IP31: with IP30 cover panels including door + gasket
  • IP55: with IP55 cover panels
• Degree of protection against mechanical impacts:
  • IIK07: with cover frame
  • IK08: with IP30 door
  • IK10: with IP55 door
• Frame dimensions:
• four widths:
  • W = 300: cable compartment
  • W = 400: cable compartment or device compartment
  • W = 650: device compartment or cable compartment
  • W = 800: busbar device compartment compartment or cable compartment
  • two depths: 400, 600 mm
  • height: 2000 mm.
• Closed cabins.

PRISMA PLUS

MCC

Single component solution

This solution includes a motor starter - controller that combines all the basic functions. for a motor feeder in one product:

• Protection against disconnection and short circuit (circuit breaker)
• Power control (contactor)
• Protection against overloads (thermal relay).

It can be used to build low and medium power motor feeders (up to 15 kW). has optimized dimensions and ensures continuity of service (total coordination)

Three component solution

Three separate devices are combined in this solution to perform various functions:

• Protection against disconnection and short circuits (magnetic circuit breaker or load disconnector fuse)
• Power control (contactor)
• Protection against overloads (thermal relay).

It can be used for different types of motor feeders, regardless of complexity or features. The separation between functions provides great flexibility in the selection of components. It also provides a way to meet certain installation and operating restrictions.

A two-component solution is possible for Prisma Plus fixed MCCs:

• GV2 P motor circuit breaker + model D contactor combination
• Does not allow selection in thermal relays (mechanical or electronic)
• It cannot be adapted to the specific requirements of certain “native” applications. ( Ex: incoming device fuse switch + contactor + thermal protection device).
